Configurable Boxes

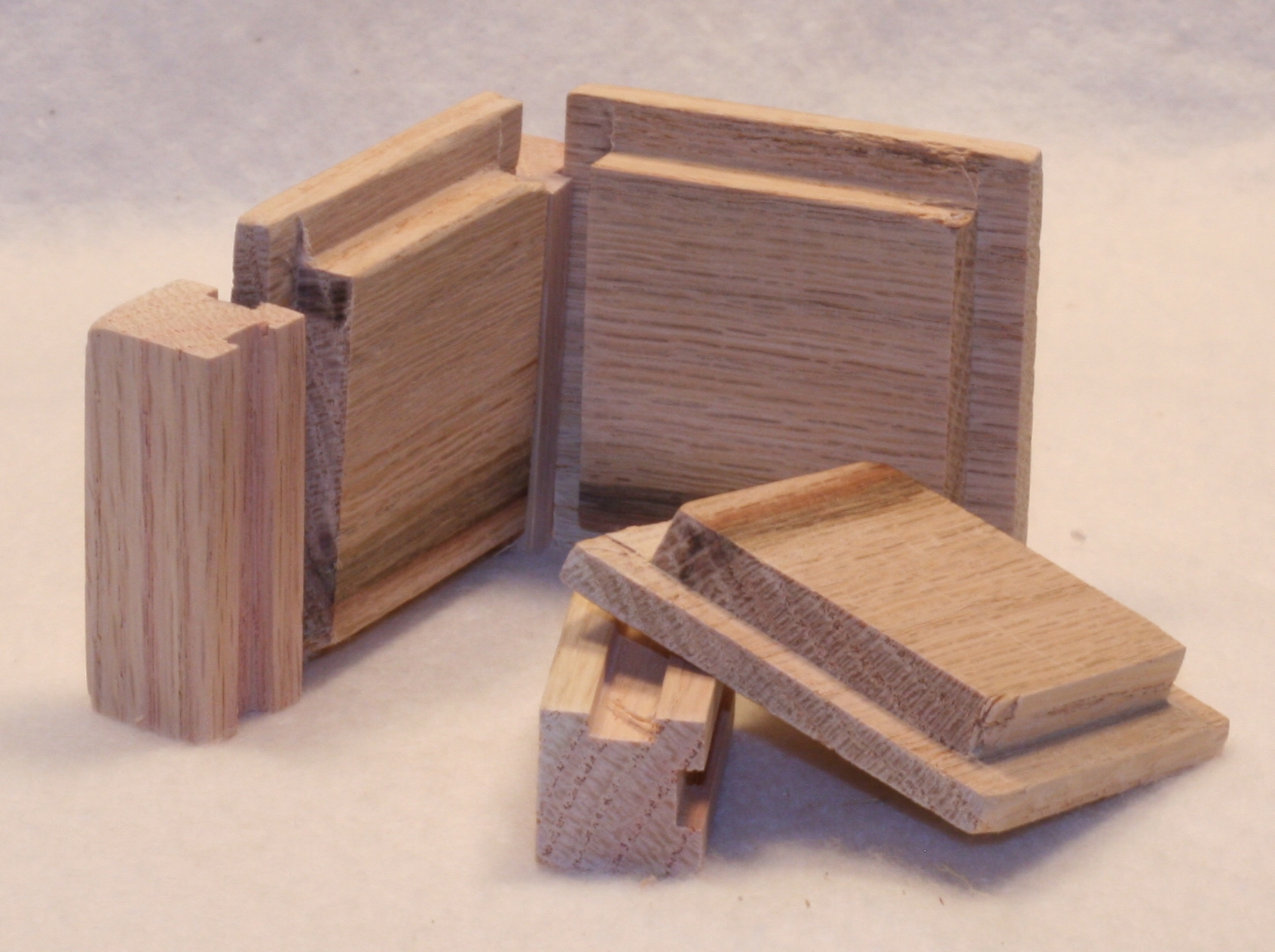

The configurable boxes consist of three components -- corner posts, sides and ends.

Corner Posts

The corner posts are made from 3/4" x 3/4" strips. Along two adjacent sides of the strip there is a 1/4" wide by 1/8" dado (centered) for the sides. The corner posts are fastened to the ends with glue or screws. The sides are not glued and float in the dado.

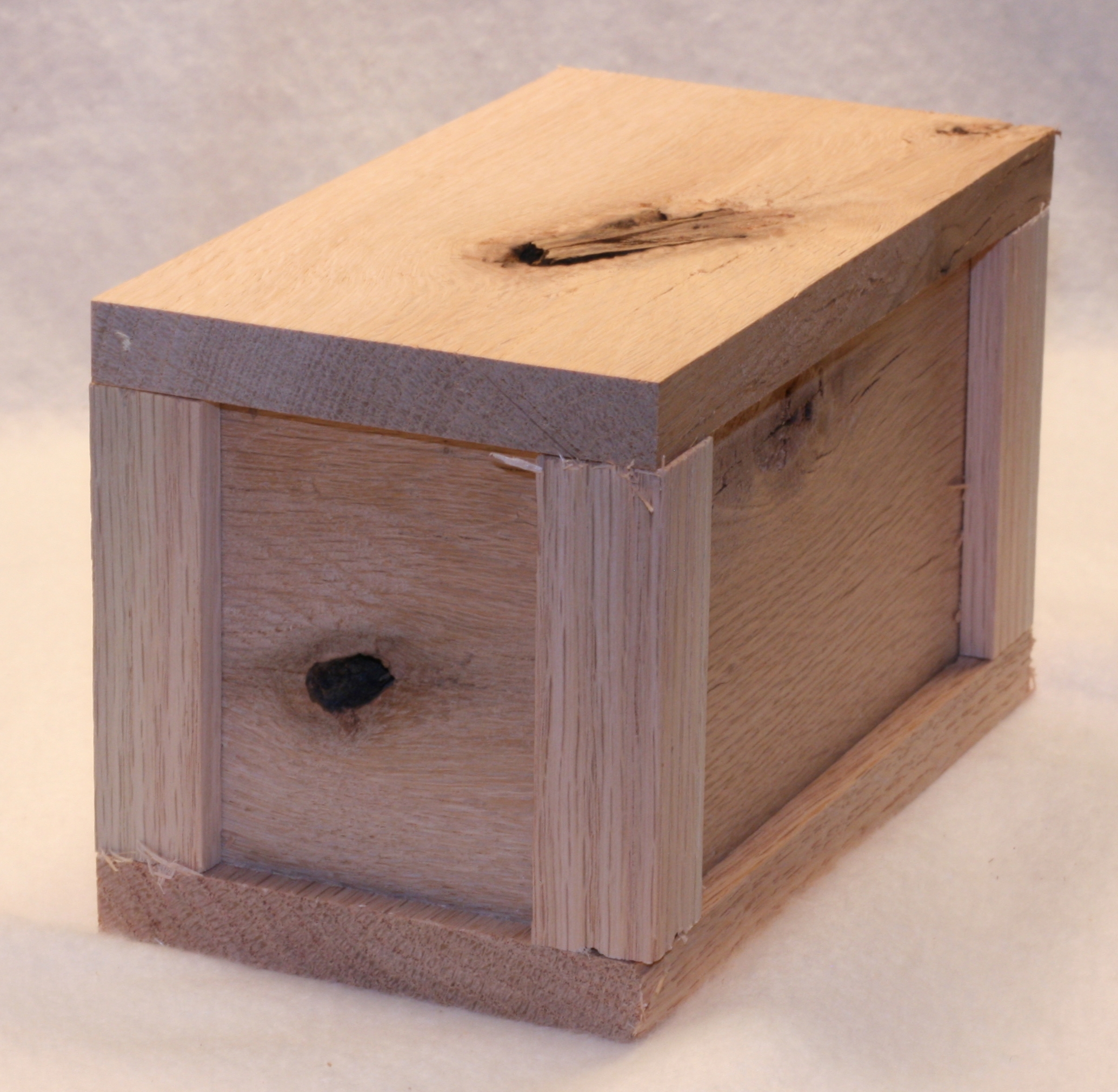

The ends can consist of a flat block or can have a milled dado to accept the sides. The ends in the pictures have a dado. The dado is 1/4" wide by 1/8" deep.


The sides can be made from 1/4" thick board (or thicker). If a thicker board is used then the sides need to be rabbeted to slide into the dado


All of the accessories are custom made although there are usually a small number of oak bases (for the ZB1 + LCD + battery source) in stock. For pricing and delivery please contact jluciani AT gmail.com

About the Wood

All of the wood used is reclaimed. The Oak and Norway Maple were harvested from local trees that were discarded. The Mahogany is from construction scraps.
