IB-PRO Prototyping Block

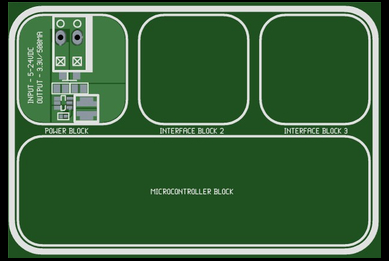

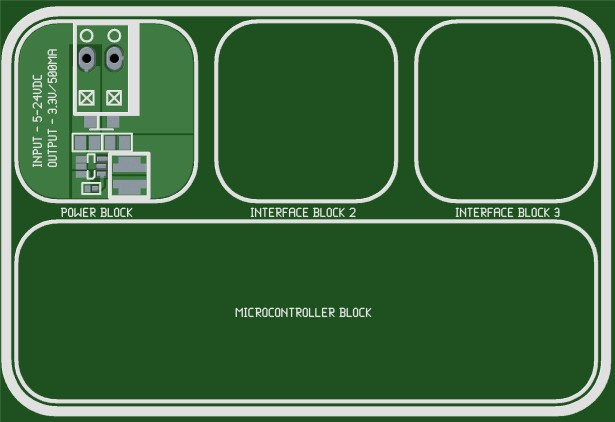

The IB-PRO is a 3" x 2" block with positions for a
3" x 1" microcontroller block, a
1" x 1" power block, and 2
1" x 1" interface blocks.
The microcontroller block can be connected to the all other blocks.
The DC inputs and outputs from the power block can be connected to
all other blocks.
Features
- A 3" x 2" block with positions to interconnect
four subblocks.
- The power block can be configured with up to three independent
voltage outputs.
- The power block DC input is routed to all blocks so additional
DC/DC conversions can be performed using the input voltage.
- The microcontroller block interfaces to all blocks.
- The IB-PRO system will be available in Q3-2020.
