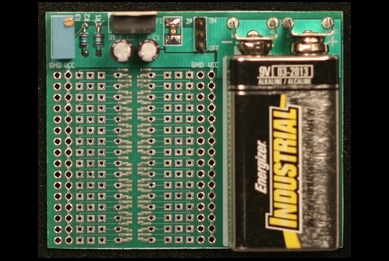

- 2.7" x 2.15"
- 1.6" x 1.6" breadboard area with TH and SMD patterns. Pattern features a
DIP (300mil), SOIC and SOT23-6 pattern overlay.
- 9V receptacle (Energizer 522 or equivalent, not included with the kit)
- Adjustable regulator 3.3V to 5V (other
voltages are possible with component changes).
- 500mA PTC
- ON/OFF Jumper
Pricing
| Part Number
| Description
| Price | Qty
|
| | IPB-9V-KIT
|
| Protoboard with 9V battery and adjustable regulator
| 8.00USD | | 1
|
|
|
IPB-9V-KIT
| Item Number
| Quantity
| Description
|
| | 1
| 2
| capacitor, Nichicon UPW1E100MDD
| | 2
| 1
| fuse, 0.5A 1812
| | 3
| 1
| header, 3x1, 100mils
| | 4
| 1
| resistor, 124 Ohm, 1/8W, 1%
| | 5
| 1
| resistor, 205 Ohm, 1/8W, 1%
|
| | 6
| 1
| potentiometer, trim, 200, 1/2W, 10 turn
| | 7
| 1
| voltage regulator, adj, 800mA, TO-220
| | 8
| 1
| Shunt with handle
| | 9
| 1
| iblocks_IPB-9V-PCB
| | 10
| 1
| Keystone_593
|
| | 11
| 1
| Keystone_594
|
|
|
Modular Components
