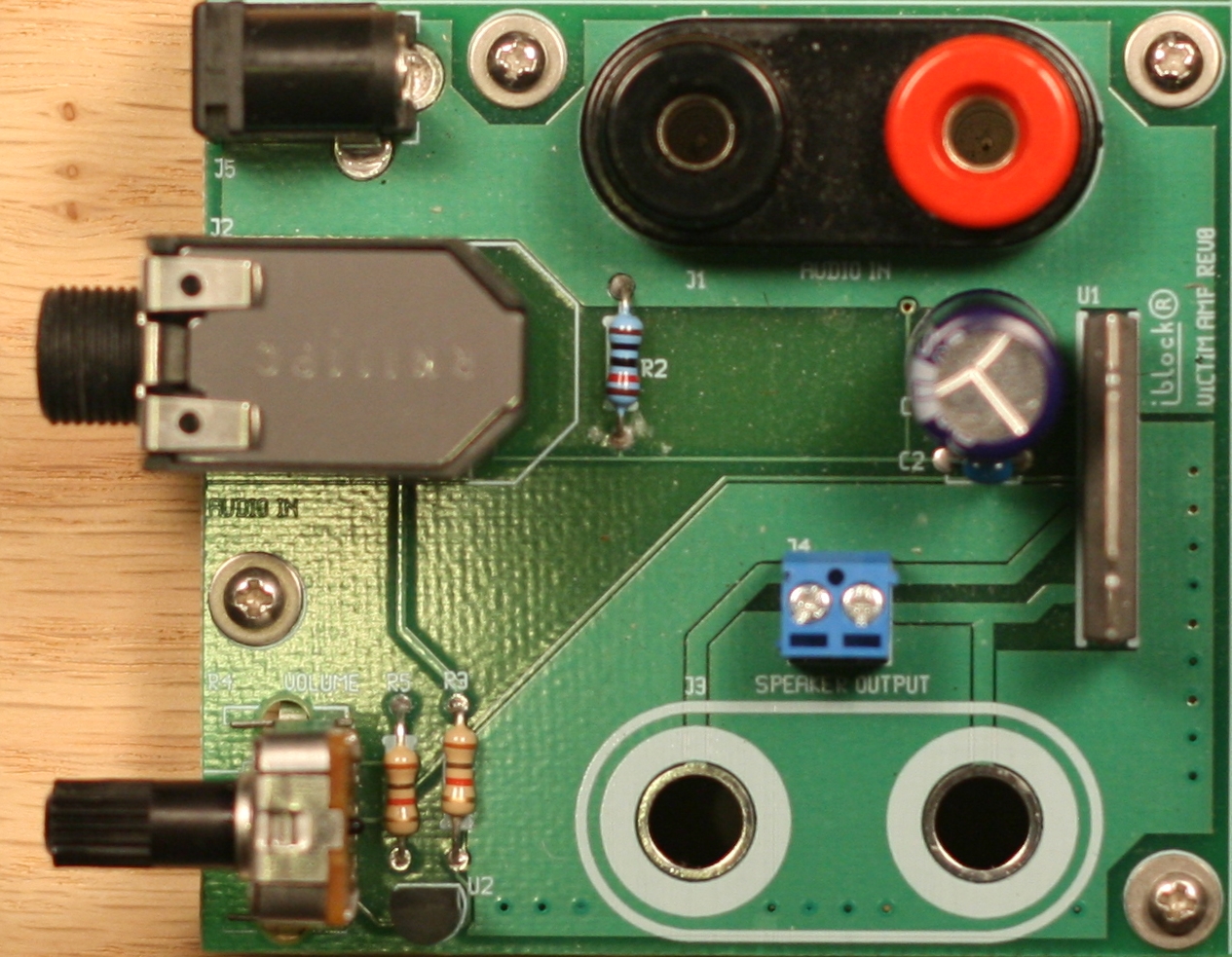

- TDA7056A 5W Amplifier
- Inputs -- 1/4" Phone Jack, banana jacks (optional)
- Outputs-- terminal block, banana jacks (optional)
- Volume control
- DC input jack (2.1mm barrel)
The VICTIM-AMP ships with a free 8Ω speaker while supplies last
Pricing
| Part Number
| Description
| Price | Qty
|
| | VICTIM-AMP-KIT
| datasheet
| Victim Amplifier Kit
| 15.00USD | | 1
|
|
|
VICTIM-AMP-KIT
| Item Number
| Quantity
| Description
|
| | 1
| 1
| capacitor, Nichicon UPM1E221MPD1TA
| | 2
| 1
| capacitor, cereamic, 0.47uF
| | 3
| 1
| jack, phone, 1/4 inch
| | 4
| 1
| connector, terminal block, 2x1, 3.5mm centers
| | 5
| 1
| power jack, 2.1mm
|
| | 6
| 1
| Xicon_270-4.7K-RC
| | 7
| 2
| resistor, 1K, 1/8W, 1%
| | 8
| 1
| potentiometer, RA, 5K, 1/10W, 3/4 turn
| | 9
| 2
| testpoint
| | 10
| 1
| IC, Amplifier, Audio TDA7056A
|
| | 11
| 1
| IC, TLV431B, 1.24V, 0.5%, TO-92
| | 12
| 1
| iblock_VICTIM-AMP-PCB
|
|
|
