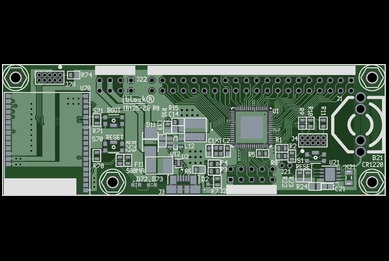

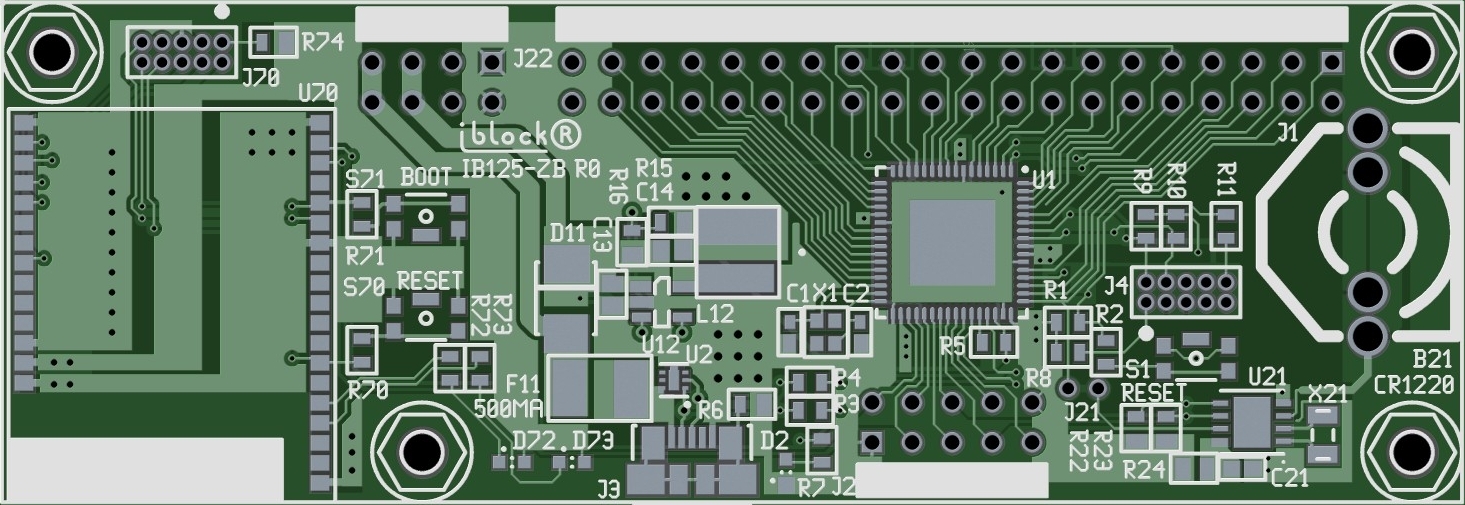

IB125-ZB Microcontroller Board

The IB125-ZB is an Arduino Zero compatible board that features the SAMD21J (ARM Cortex M0+), a ZigBee radio (Telegesis ETRX357), real-time clock and a 5V to 3.3V switching regulator. Included with the IB125-ZB is a three slot backplane (IB125-BP) with a prototyping area.

Features

• Atmel SAMD21J (ARM Cortex M0+)
• Compatible with the Arduino development tools and libraries.
• 44 user I/O lines
• 16 ADC channels
• USB Interface
• RTC Features
  • Real-Time Clock (RTC) counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap-Year Compensation Valid Up to 2100
  • Two Time-of-Day Alarms
  • Programmable Square-Wave Output
  • Backup power from a CR1220 coin cell.
  • I2C Serial Interface
• ZigBee radio (Telegesis ETRX357) with programming connector
• 3.3V switching regulator powered from USB or from backplane
• Three slot backplane (IB-BP)
• 3.65" x 1.25"

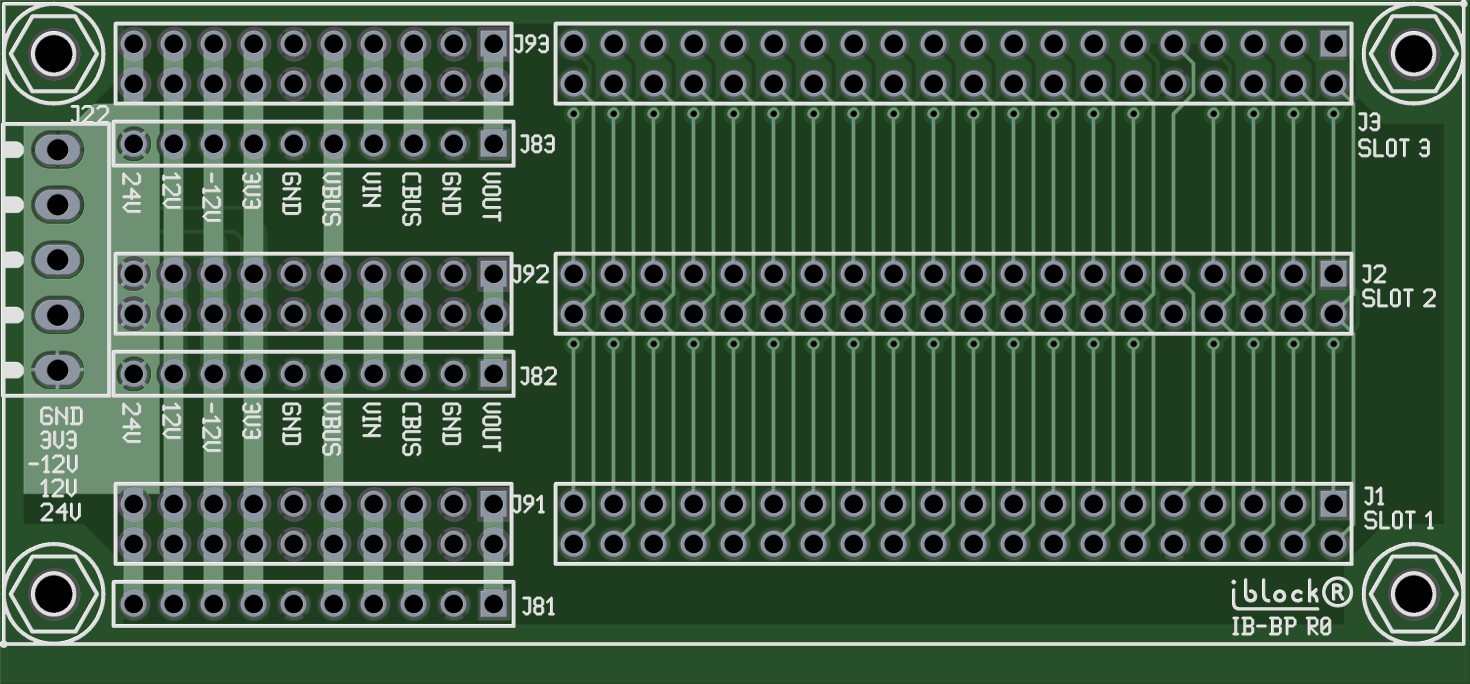

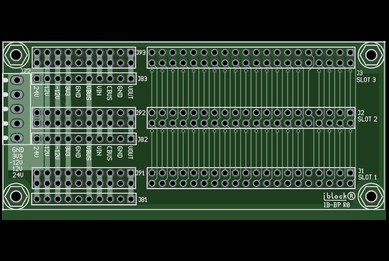

IB-BP Backplane for IB-125

The IB-BP is a three slot backplane for the IB125-xx series boards. The backplane features buses for +24V, +12V, -12V and 3.3V. The USB +5V and regulated voltages from the connected IB125-xx boards can be jumpered to the buses. The backplane dimensions are 3.65" x 1.6".
