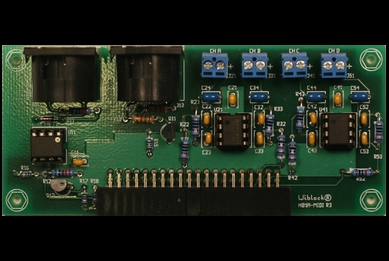

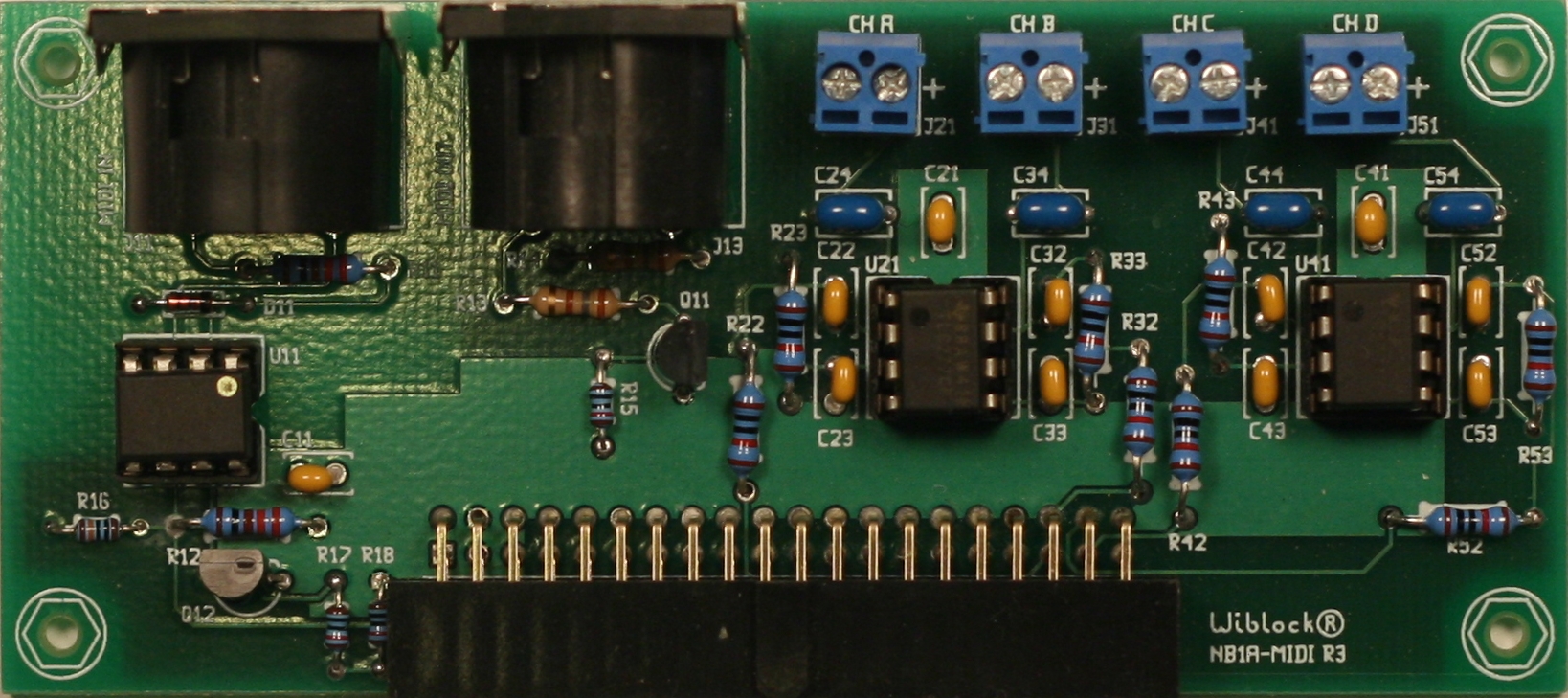

NB1A-MIDI
The NB1A-MIDI consists of a midi input, midi output and four two-pole
filters that is compatible with the NB1A, the NB1 and ZB1. The filters
connect to the DAC outputs of the NB1A. Since the NB1 and ZB1 do not
have DAC outputs only the MIDI interface is connected. The filters
could be wired to external circuitry.
Features
- MIDI input, MIDI output
- MIDI input is disabled during boot-up
- Four two-pole filters.
- Compatible with the NB1A, ZB1 and NB1.
NB1A-MIDI Pricing
| Part Number
| Description
| Price | Qty
|
|
| NB1A-MIDI-KIT
| datasheet
| MIDI Interface for the NB1A, NB1, ZB1
| 20.00USD | | 1
|
|
|
NB1A-MIDI Component List
| Item Number
| Quantity
| Description
|
|
| 1
| 3
| capacitor, ceramic, 0.1uF, 10%, 50V, X7R
|
| 2
| 8
| Kemet_C320C472K1R5CA
|
| 3
| 4
| capacitor, ceramic, 10uF, 20%, 10V, X5R
|
| 4
| 1
| diode, 1N4148
|
| 5
| 1
| header, female, RA, 20x2, 100mils
|
|
| 6
| 2
| CUI_SDS-50J
|
| 7
| 4
| connector, terminal block, 2x1, 3.5mm centers
|
| 8
| 1
| BJT, 2N3906
|
| 9
| 1
| BJT, 2N3904
|
| 10
| 2
| resistor, 220 Ohm, 1/4W, 1%
|
|
| 11
| 2
| resistor, 180 Ohm, 1/4W, 1%
|
| 12
| 3
| resistor, 10K, 1/8W, 1%
|
| 13
| 1
| resistor, 100K, 1/8W, 1%
|
| 14
| 8
| resistor, 10K, 1/4W, 1%
|
| 15
| 1
| Fairchild_6N138
|
|
| 16
| 2
| TI_TLC277CP
|
| 17
| 3
| DIP Socket, 8 Pin, 300mil centers
|
| 18
| 1
| wiblock_NB1A-MIDI-PCB
|
|
