PICO1TRC - 2.1" x 1.65"

The PICO1TRC is a physical computing board that is compatible with the Arduino software environment. The board size is 2.1" x 1.65". All I/O pins from the ATmega328 are brought out on 2 rows of 14 pins (300mil spacing). A battery backed-up RTC and small prototype area are included on the board.

• 2.1" x 1.65"
• Replaceable and upgradeable CPU (ATmega168 or ATmega328)
• Compatible with the Arduino development tools.
• Adjustable Linear Regulator (Vcc 3.3V - 5V) Output voltage is set by changing one resistor. Resistors for 3.3V and 5V are included.
• RTC Features
  • Real-Time Clock (RTC) counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap-Year Compensation Valid Up to 2100
  • Two Time-of-Day Alarms
  • Programmable Square-Wave Output
  • Backup power from a CR1220 coin cell.
  • I2C Serial Interface
• Two rows of 14 pins (300mil spacing) with all ATmega168/328 I/O functions.
• Six pin header for an FTDI TTL-232R-3V3 cable.
• Debug LED that can be jumpered to Pin 7 or disconnected.
• A/D reference supply filtered per Atmel specification.
• Reset circuit per Atmel specification.

PICO1TR - 2.1" x 1"

The PICO1TR is a physical computing board that is compatible with the Arduino software environment. The board size is 2.1" x 1". All I/O pins from the ATmega168 (or ATmega328) are brought out on 2 rows of 14 pins (300mil spacing).

• 2.1" x 1"
• Replaceable and upgradeable CPU (ATmega168 or ATmega328)
• Compatible with the Arduino development tools.
• Adjustable Linear Regulator (Vcc 3.3V - 5V) Output voltage is set by changing one resistor. Resistors for 3.3V and 5V are included.
• ATmega168 (or ATmega328) running at 12MHz (Vcc 3.3V - 5V)
• Two rows of 14 pins (300mil spacing) with all ATmega168/328 I/O functions.
• Six pin header for an FTDI TTL-232R-3V3 cable.
• Debug LED that can be jumpered to Pin 7 or disconnected.
• A/D reference supply filtered per Atmel specification.
• Reset circuit per Atmel specification.

PICO1TR-LED-L

The PICO1TR-LED-L is an 8x8 LED matrix that is designed to interface with a PICO1TR . The board size is 2.1"x3.625" with a the 2.1"x1" area to mount a PICO1TR .

• 8x8 matrix of 5mm LEDs -- requires only nine I/O lines.
• 2.1" x 3.625"
• Mounting area for PICO1TR.
• Positions for six 6mm pushbuttons (Panasonic PAE04M or equivalent).
• Position for a potentiometer (Panasonic EVU-F2AF30B54 or equivalent).
• 100mil Header connector for the unused I/O lines -- RX and TX (PD0, PD1), digital I/O lines (PB3, PB4, PB5) and analog I/O lines (PC0, PC1, PC2, PC3, PC4, PC5).

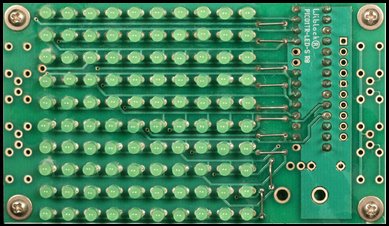

PICO1TR-LED-S

The PICO1TR-LED-S is an 8x8 LED matrix that is designed to interface with a PICO1TR . The board size is 2.1"x3.625" with a the 2.1"x1" area to mount a PICO1TR .

• 10x10 matrix of 3mm LEDs -- requires only eleven I/O lines.
• 2.1" x 3.625"
• Mounting area for PICO1TR.
• Positions for six 6mm pushbuttons (Panasonic PAE04M or equivalent).
• Position for a potentiometer (Panasonic EVU-F2AF30B54 or equivalent).
• 100mil Header connector for the unused I/O lines -- RX and TX (PD0, PD1), digital I/O lines (PB3, PB4, PB5) and analog I/O lines (PC0, PC3, PC4, PC5).
