The PICO1TR
is available in panels
called a PICO1TR PANEL

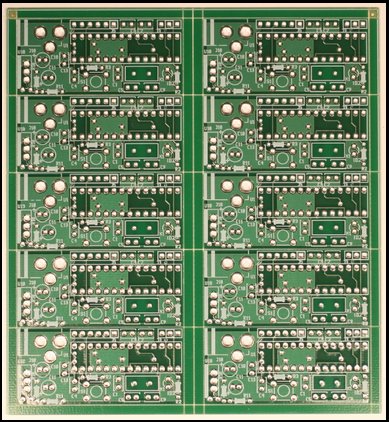

Each panel consists of ten PICO1TR
pcbs arranged with v-scores between the rows and
columns to enable individual PCBs to be separated after after the
panel is assembled. The individual PCBs are arranged in two groups of
five. When split vertically at the center both halves are
identical. There is a 125mil keepout area around the periphery of the
panel and two 125mil keepout areas between the halves.
Since all of the I/O connections from the PICO1TR
are through the microcontroller a long pin socket
is required (e.g. wire-wrap socket). The PICO1TR-PANEL can be
purchased with wire-wrap sockets).
Pricing
| Part Number
| Description
| Price | Qty
|
| | PICO1TR-PANEL
|
| PCB panel containing ten PICO1TR PCBs
| 30.00USD | | 1
|
|
| | PICO1TR-PANEL-WW
|
| PICO1TR-PANEL plus ten sockets
| 40.00USD | | 1
|
|
|
|
