NB1A-PB1 Protoboard

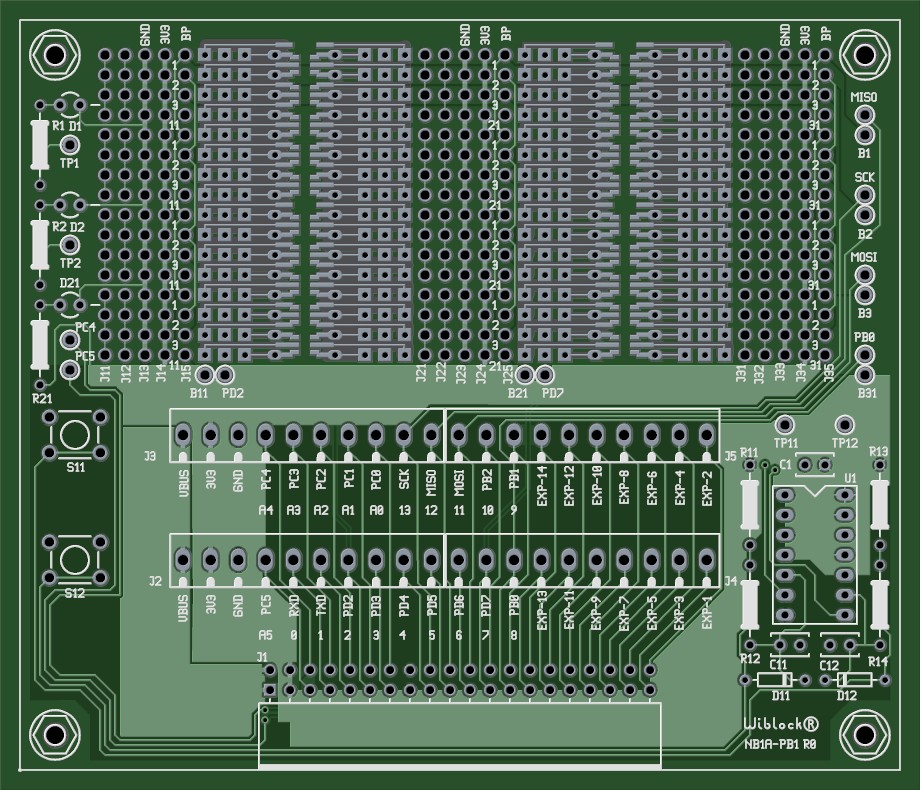

The NB1A-PB1 prototyping board (right) is designed for creating TH and
SMD ciruitry to attach to a NB1A, NB1 and ZB1. For more information
see the
NB1A-PB1 datasheet.
Features
- Input connector is compatible with the NB1A, NB1 and ZB1 output connector.
- All thru-hole components.
- Two terminal blocks with 3.5mm centers.
- 1.6" x 4" breadboard area with TH and SMD patterns. Pattern features a
DIP (300mil), SOIC and SOT23-6 pattern overlay.
- Two de-bounced push-buttons.
- Three debug LEDs (one for the 3.3V supply, two wired to testpoints)
Pricing
| Part Number
| Description
| Price | Qty
|
|
| NB1A-PB1-KIT
| datasheet
| Prototyping board kit for NB1A, NB1 and ZB1
| 20.00USD | | 1
|
|
|
NB1A-PB1-KIT Component List
| Item Number
| Quantity
| Description
|
|
| 1
| 3
| capacitor, ceramic, 0.1uF, 10%, 50V, X7R
|
| 2
| 3
| LED, T1, Green
|
| 3
| 2
| diode, 1N4148
|
| 4
| 1
| header, female, RA, 20x2, 100mils
|
| 5
| 4
| connector, terminal block, 10x1, 3.5mm centers
|
|
| 6
| 3
| resistor, 220 Ohm, 1/4W, 1%
|
| 7
| 2
| resistor, 10K, 1/4W, 1%
|
| 8
| 2
| resistor, 330K, 1/4W, 1%
|
| 9
| 2
| pushbutton
|
| 10
| 1
| IC, logic, hex inverter, schmitt, DIP
|
|
| 11
| 1
| wiblock_NB1A-PB1-PCB
|
|
