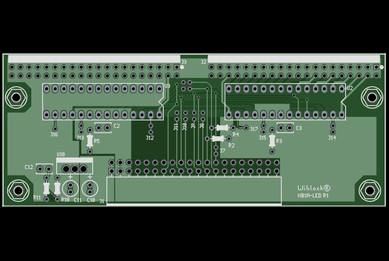

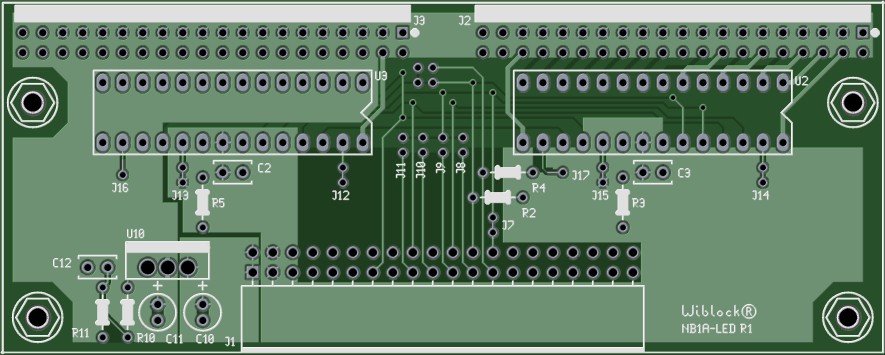

NB1A-LED
The NB1A-LED is a 32 channel LED driver based on the Texas Instruments
TLC5940. The board is compatible with the Arduino development tools
including the TLC5940 library. The Knight-Rider demo (right) uses the
example code in the TLC5940 library. The only required change was to
set the constant
NUM_TLCS to
2 in
tlc_config.h.
Features
- 32 independent channels on two 40 pin headers. Compatible
with IDE cables.
- Channels can be paralleled using multiple receptacles on
a single ribbon cable.
- Separate adjustable regulator for the LED anode.
- XLAT can be configured so that multiple cards can be
independently controlled on the same bus.
- Compatible with the ZB1, NB1, NB1A and the NB1A
backplane.
NB1A-LED Pricing
| Part Number
| Description
| Price | Qty
|
|
| NB1A-LED-KIT
| datasheet
| 32 channel LED driver for the NB1A, NB1, ZB1
| 20.00USD | | 1
|
|
|
NB1A-LED Component List
| Item Number
| Quantity
| Description
|
|
| 1
| 2
| capacitor, Nichicon UPW1E100MDD
|
| 2
| 3
| capacitor, ceramic, 0.1uF, 10%, 50V, X7R
|
| 3
| 1
| header, female, RA, 20x2, 100mils
|
| 4
| 2
| resistor, 10K, 1/8W, 1%
|
| 5
| 2
| resistor, 2.0K, 1/8W, 1%
|
|
| 6
| 1
| resistor, 124 Ohm, 1/8W, 1%
|
| 7
| 1
| resistor, 205 Ohm, 1/8W, 1%
|
| 8
| 2
| IC, LED Driver, TLC5940NT, 32ch
|
| 9
| 1
| voltage regulator, adj, 800mA, TO-220
|
| 10
| 2
| DIP Socket, 28 Pin, 300mil centers
|
|
| 11
| 2
| wiblock_HDR_RA_BR-17X2-100M
|
| 12
| 1
| wiblock_NB1A-LED-PCB
|
|
